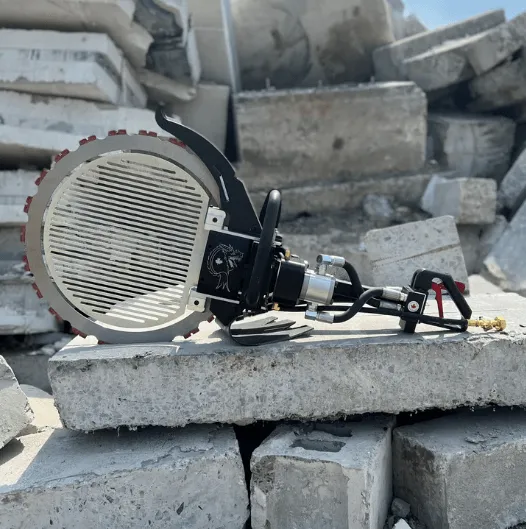

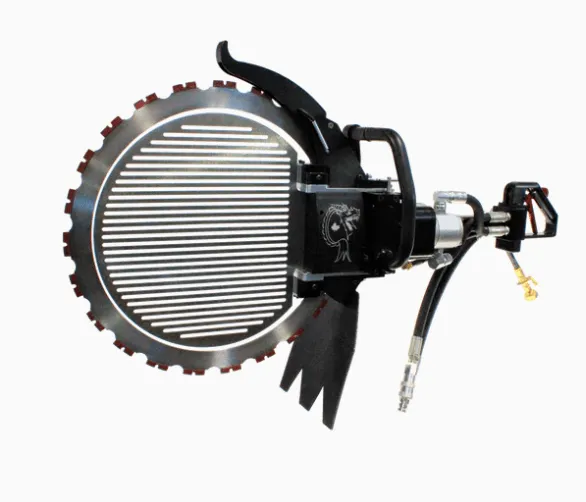

HYDRAULIC DRAGON SAW HDS CONCRETE SAW - BLACK EDITION

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

Features & Benefits

• The ONLY hand saw capable of cutting up to 20” deep in concrete or block
• 16", 20", and 24" blades available
• Comes standard with 16" full center support, 20" and 24" options available separately
• No pre-cutting is required
• Best power transfer to blade-where it is needed
• 1/3 less cutting cost than chain sawing
• Up to three times faster than chain sawing
• Diamond blade life up to five times longer
• 100% use of blade
• Weight 29.8 lbs.
• Wet cutting only

Hydraulics

• Connection 1/2" fittings
• About 12" of hose length
• 2000-2500 PSI
• Weight 32 lbs with blade

Maintenance

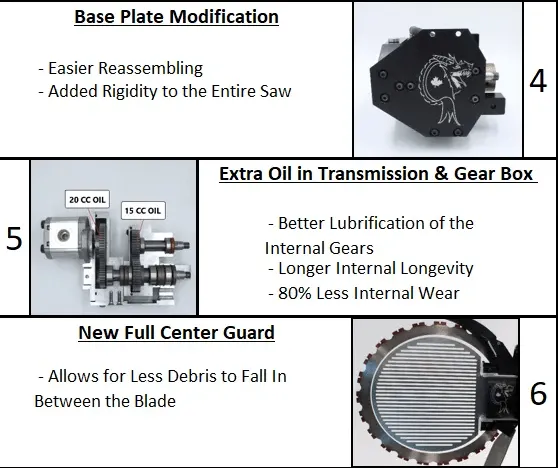

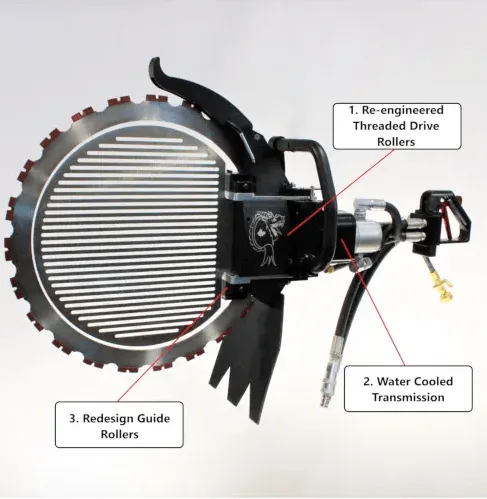

• Best practice to replace gearbox and transmission oil with each new blade, possible with new Black Edition Dragon Saw oil to last for 2 blades before its critical to change oil.  Black Edition has water cooled gearbox.

HDS DRAGON RING SAW
