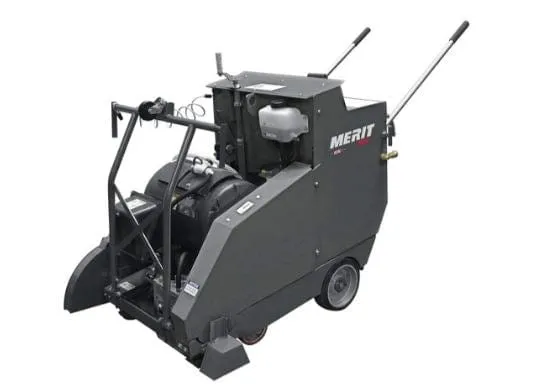

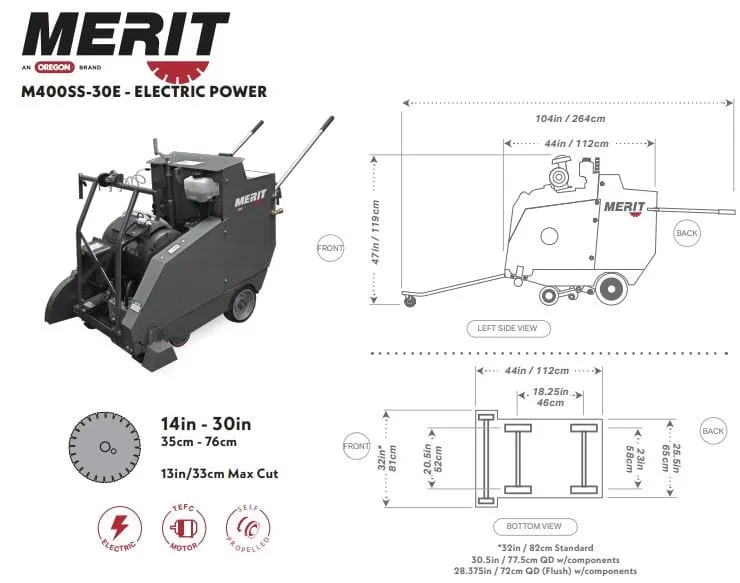

MERIT M400SS 30HP ELECTRIC WALK BEHIND SAW
REAR PIVOT, 4-SPEED

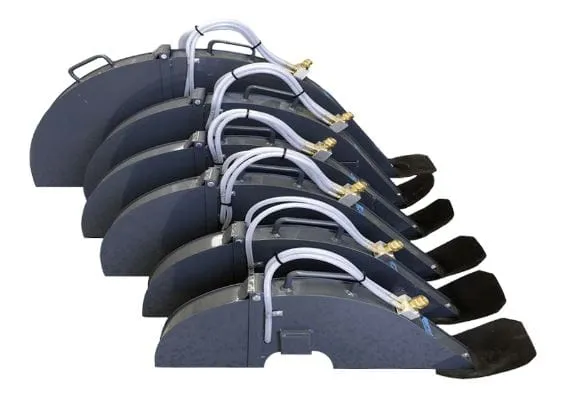

NOT INCLUDED, AVAILABLE SEPARATELY
FEATURES & BENEFITS
- Powerful Baldor 480v 3-phase motor
- Self-propelled drive transmission

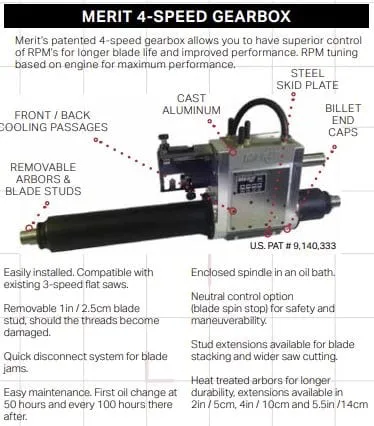

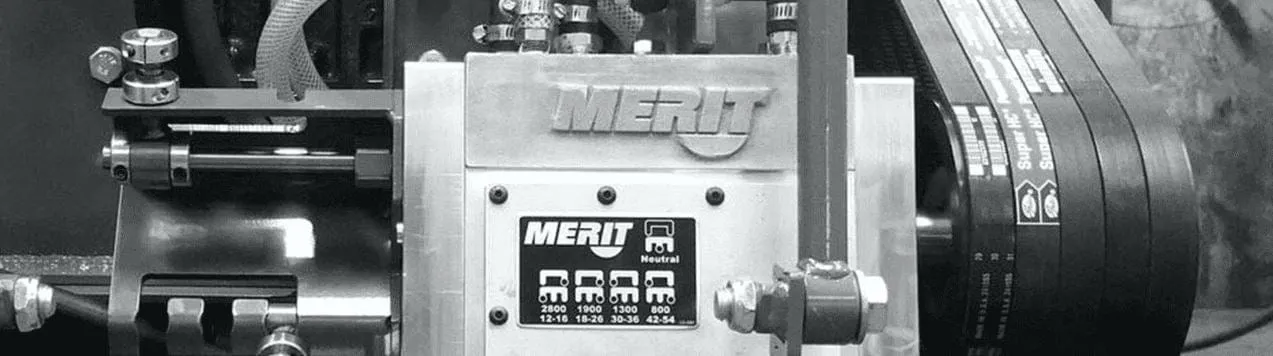

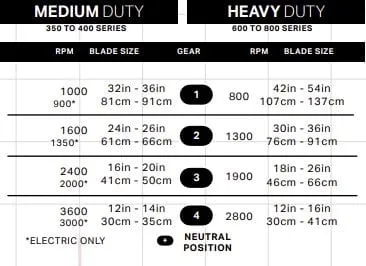

- 4-Speed blade transmission gives optimum blade speed for all conditions
- Fits through a 36" door frame
- Compact frame design-SS option shortens frame 3" for better maneuverability
- Rear pivot design allows superior maneuverability
- Locking / Unlocking differential aids in straight cuts and tight rotations
- Very low noise and vibration
- Zero emissions
- Light kit included
M400SS SPECIFICATIONS
| Horsepower | 30 hp |
| Motor | Baldor |
| Max depth of cut with 30" blade | 13" |

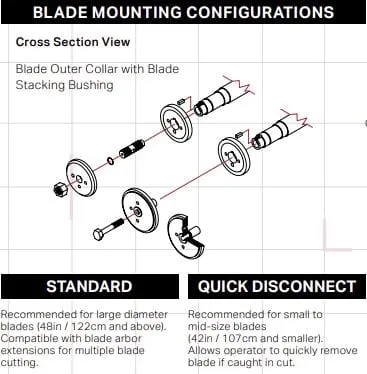

| Arbor diameter | 4" |
| Bladeshaft drive | 10 belts |
| Bladeshaft diameter | 1" |
| Drive Speed, fpm | 0-240 |

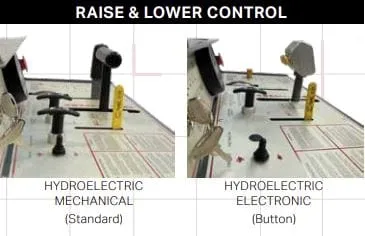

| Depth control | Hydraulic |
| Weight, lbs | 1,100 |
